  • Bedside Arm Touchscreen Computer Systems

MT1333

● High-Performance Rockchip RK3399 Dual/Quad-core processors
● 13.3-inch 1920×1080 IPS LCD for the best display
● 10-point capacitive multi-touch screen
● Android 12 / Ubuntu 18.04 operating systems
● Handset for the service call, key membrane, and remote control
● Extendable USB host for the barcode reader
● RJ45 interface for Ethernet LAN, support PoE+
● Built-in front CMOS camera, SSD hard disk (optional)
● VESA mount, 75x75mm and 100x100mm compatible
● Digital TV tuner (optional), Smart Card+RFID (optional)

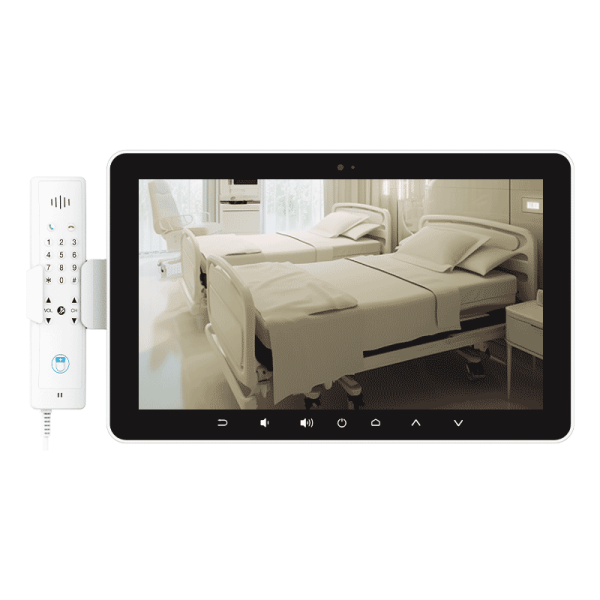

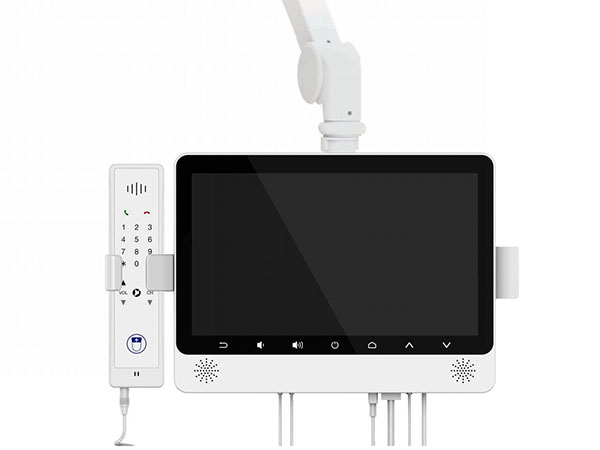

13.3” Smart Bedside Terminal
The prime objective of the smart bedside computing terminals’entrance into the hospitals and clinical environment is nothing but to automate hospital system to the best level and help patient psychologically to recover them quicker. Saintway does the same. MT1333 bedside infotainment terminal as powerful computing device, of Saintway has been specifically designed for use in the hospital and clinical environment. MT1333 provides the staff direct access to the patient’s electronic medical record and also to the hospital information system. It provides patients with more tools for health education, interaction with the medical care staff and also diverse entertainment programs such as TV, radio, audio, video, games and the unlimited entertainment tool. It equips a 13.3″IPS LCD screen with a 10-point touchscreen, Ethernet, Wi-Fi, Bluetooth, USB host 3.0, TYPE-C, RFID, Extended storage and a Barcode reader with a USB dongle. Featuring antibacterial plastics, an easy-clean design, and a front screen that is IP65 rated. This beside terminal fully complies with the latest hygiene and safety.

Modern and reliable Touch Screen
Along with its high-performance specifications, it also has a lower power consumption 13.3-inch 1920×1080 LCD which is based on In-plane switching (IPS) technology that provides a user an amazing experience. The screen is based on its 10-point capacitive multi-touch which is highly sensitive and accurate. This feature makes the outcome more user-friendly and comfortable to use.

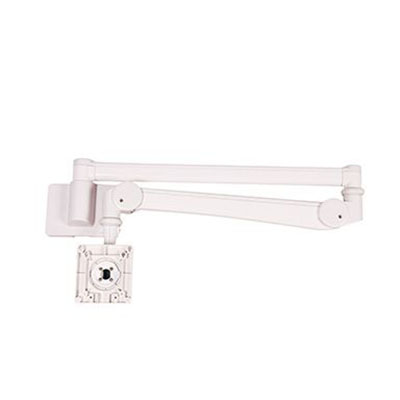

Compatible with VESA Mount
VESA mounting allows low-cost installation of displays into a broad range of applications while positioning screens for increased flexibility and ergonomic benefit.

Extendable USB Host for Barcode Reader
MT1333 can be extended for Barcode reader via USB. Barcode readers make it easier for inventory control so precisely.

Built-in Front CMOS camera
It equips with a 2MP front camera based on CMOS which has various advantages over traditional CCD technology: Lower dark noise, Higher Sensitivity, and lower power consumption.

HDMI Supported
MT1333 also supports HDMI technology which is a standard interface for simultaneously transmitting digital video and audio from a source, such as a computer or TV cable box, to a computer monitor, TV, or projector. Thus, it elevates the traditional in-room TV into a computing platform that provides patients with a range of various content.

Supporting Market-Led Operating Systems with Comprehensive Support
MT1333 supports both the industry-led Linux-based operating systems. Android being a leading mobile OS provides better security While Ubuntu which is a leading open-source desktop operating system provides an incredible user experience.

Engaging and Empowering a Patient
Generally, a patient’s mobility remains confined within a hospital room due to which excessive rest and boredom negatively affect the patient’s health. However, this terminal helps engage them with infotainment stuff and empowers them to keep connecting with doctors, nurses and medical staff as well as family and world. It allows patients to access entertainment, telephone and internet services through its simple and interactive interface thus to improve patients’engagement and experience.

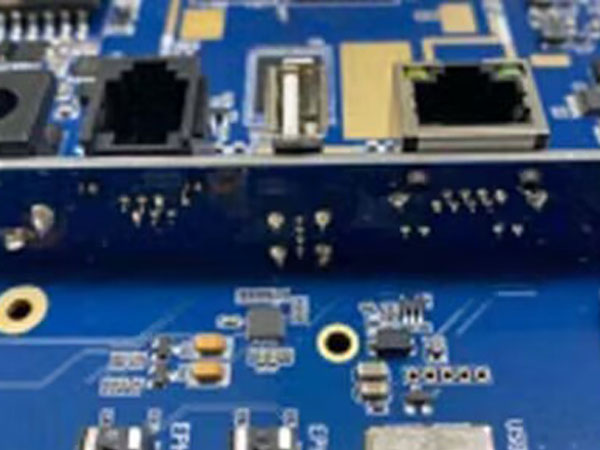

Self-developed industrial-grade boards –Support 7*24 hours of uninterrupted continuous operation

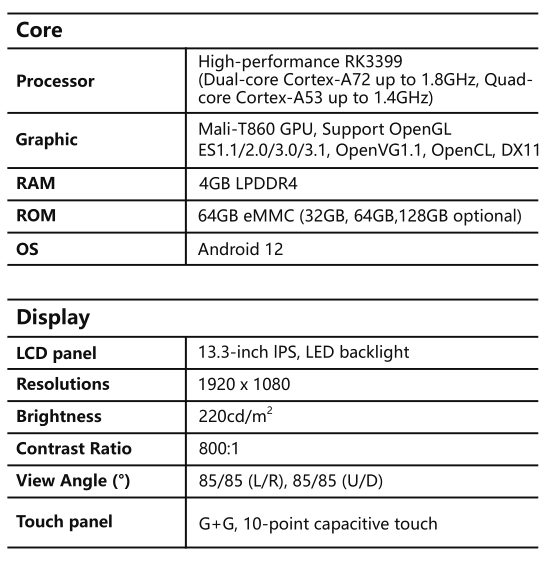

Specifications

ModelMT1333
CoreProcessorHigh-performance RK3399
(Dual-core Cortex-A72 up to 1.8GHz,Quad-core Cortex-A53 up to 1.4GHz)
GraphicMali-T860 GPU,Support OpenGL ES1.1/2.0/3.0/3.1,OpenVG1.1,OpenCL,DX11
RAM4GB LPDDR4
ROM64GB eMMC(32GB,64GB,128GB optional)
OSAndroid 12
DisplayLCD panel13.3 inch IPS,LED backlight
Resolutions1920×1080
Brightness220 cd/m²
Contrast Ratio800:1
View Angle (°)85/85(L/R),85/85(U/D)
Touch panelG+G,10-point capacitive touch

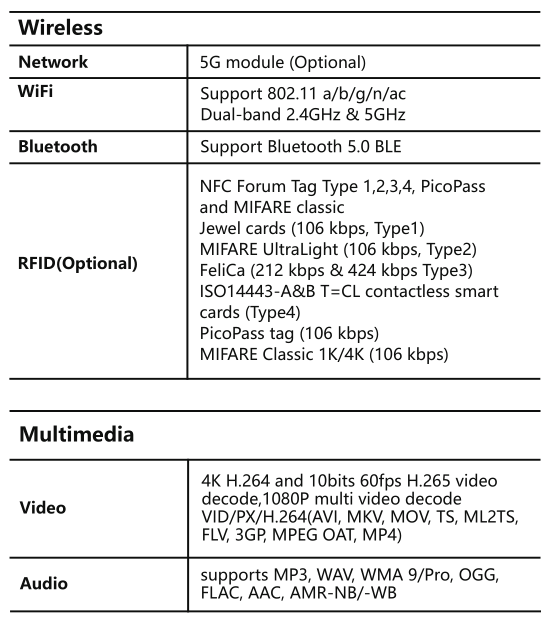

WirelessNetwork5G module (Optional)
WiFiSupport 802.11 a/b/g/n/ac Dual-band 2.4GHz &5GHz
BluetoothSupport Bluetooth 5.0 BLE
RFID(Optional)NFC Forum Tag Type 1,2,3,4,PicoPass and MIFARE classic Jewel cards (106 kbps,Type1)
MIFARE UItraLight (106 kbps,Type2)
FeliCa (212 kbps &424 kbps Type3
ISO14443-A&B T=CL contactless smart cards  (Type4)
PicoPass tag (106 kbps)
MIFARE Classic 1K/4K(106 kbps)
MultimediaVideo4K H.264 and 10bits 60fps H.265 video decode,1080P multi video decode
VID/PX/H.264(AVI,MKV,MOV,TS,ML2TS FLV,3GP,MPEG OAT,MP4)
Audiosupports MP3,WAV,WMA 9/Pro,OGG FLAC,AAC,AMR-NB/-WB

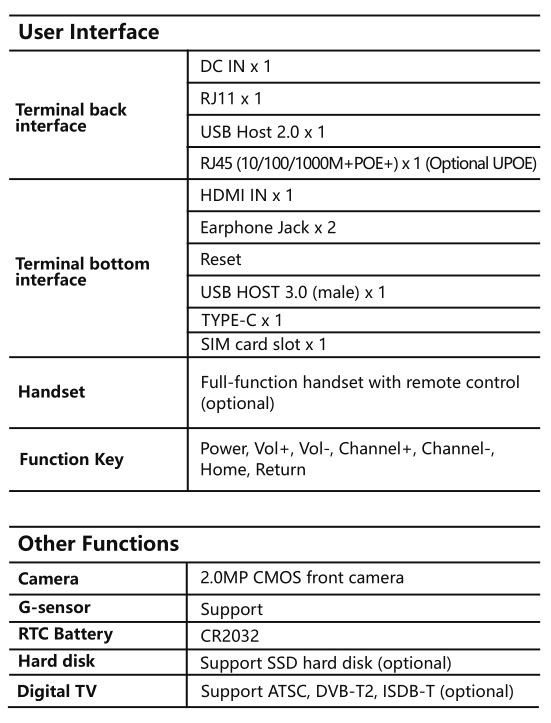

User InterfaceTerminal back
interface
DC IN x 1
RJ11 x 1
USB Host 2.0 x 1
RJ45(10/100/1000M+POE+) x 1 (Optional UPOE)
Terminal bottom
interface
HDMI IN x 1
Earphone Jack x 2
Reset
USB HOST 3.0 (male) x 1
TYPE-C x 1
SIM card slot x 1
HandsetFull-function handset with remote control (optional)
Function KeyPower,Vol+,Vol-,Channel+,Channel-,Home,Return
Other FuctionsCamera2.0MP CMOS front camera
G-sensorSupport
RTC BatteryCR2032
Hard diskSupport SSD hard disk (optional)
Digital TVSupport ATSC,DVB-T2,ISDB-T(optional)

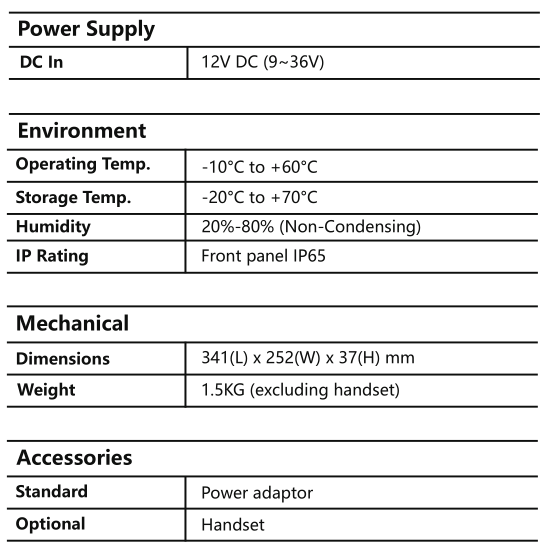

Power SupplyDC In12V DC (9~36V)
EnvironmentOperating Temp.-10℃ to +60℃
Storage Temp.-20℃ to +70℃
Humidity20%-80% (Non-Condensing)
IP RatingFront panel IP65
MechanicalDimensions341(L)x 252(W)x37(H) mm
Weight1.5KG (excluding handset)
AccessoriesStandardPower adaptor
OptionalHandset
