  • Most Rugged Tablet Price

HC15

● High-performance Rockchip 3288 Quad-core processor
● 15.6 inches 1920×1080 IPS LCD Screen for the best output
● 10-point multi-touch capacitive touch screen control
● Android 11 operating systems
● Handset for a service call, key membrane, and remote control
● Support WLAN, Bluetooth 4.0
● Extendable USB host for RFID/Barcode reader, TV tuner dongle
● RJ45 interface for Ethernet LAN, support POE+
● Built-in front CMOS camera
● VESA mount, 75x75mm and 100x100mm compatibl

15.6”Smart Bedside Terminal
In the era of technological enhancement where the world population is surrounded by millions of smart devices and uncountable wireless signals, the lack of technology inside the clinical environment can cause of real frustration points for the Hospital and patients. Saintway offers its intelligent Computing Terminal- HC15. HC15 bedside infotainment terminal is an easy-to-use touch-screen device that has been specially designed for hospitals and the clinical environment. It provides patients with a quantum leap of entertainment, communication, self-service and education options. HC15 applications includes, alarming the staff as well as patients about the medical caring schedules (dose timing), increased clinical efficiency and workflow for the medical care staff members. It equips a 15.6″ IPS LCD screen with a 10-point touchscreen, latest powerful processing technology, USB host, OTG, extended storage, and a front camera. Besides, HC15 is also featured with extended functions like a TV tuner, RFID and Barcode reader with a USB dongle. Featuring antibacterial plastics, this beside terminal fully complies with the latest hygiene and safety standards.

The all-in-one approach makes it a perfect choice
HC15 comprehensively covers all the modern features in one device. It incorporates 15.6 inches 1920×1080 IPS LCD Screen, full HD IPS 10-point touch capacitive screen, widescreen design , powerful processor, and optimized operating system. Moreover, the product has been developed keeping in view the specific challenges within the Healthcare environment utilizing anti-bacterial plastics and healthcare-certified components and peripherals .

Fully compliant with latest hygiene and safety standards
Taking into account the potential risks posed by pathogenic microorganisms, HC15 smart bedside terminal is crafted entirely from antibacterial material that meets European medical certification standards, ensuring patient safety and hygiene.

Embedded with the best mobile operating system
HC15 features Android 11 OS which provides better security and user experience. Users can enjoy the latest features available for android mobiles. It supports all Google services as well as third-party apps. Extensive support is available for Android.

Modularized peripherals
It can be extended through modularized peripherals: RFID, handset, and TV tuner dongle. RFID has various applications in the health industry. It simplifies the clinical trial process, improves the accuracy of patient identification, eases inventory management, and eradicates the risk of administering the wrong medications. Similarly, A TV tuner dongle allows a patient to watch television programs through HC15.

Compatible with VESA mount
HC15 supports VESA mounting, 75x75mm and 100x100mm compatible.
It can be conveniently placed on the patient’s bedside, featuring an adjustable screen for optimal viewing comfort and effortless positioning.

Transforming Patient Care with Our Smart Bedside Terminal
The HC15 smart bedside terminal revolutionizes the patient experience, providing easy access to an array of infotainment options and seamless connectivity with healthcare professionals, family members, and the outside world. With its intuitive and interactive design, patients can effortlessly engage in entertainment, communicate via phone calls, and leverage internet services, significantly enhancing their hospital stay.

Specifications

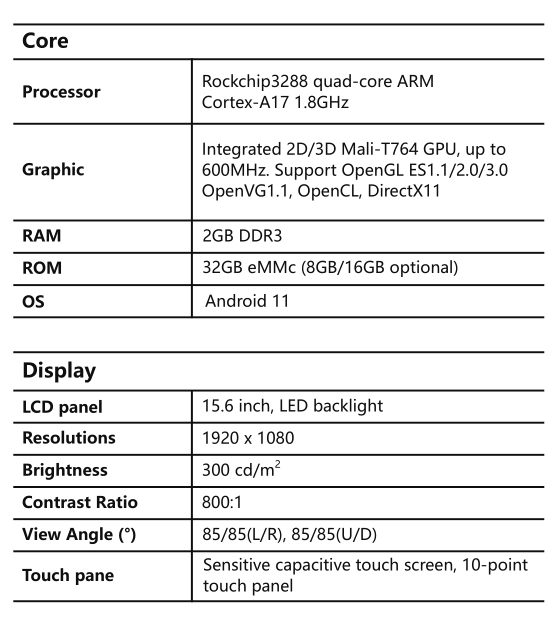

ModelHC15
CoreProcessorRockchip3288 quad core ARM Cortex-A171.8GHz
GraphicIntegrated 2D/3D Mali-T764 GPU,up to 600MHz.Support OpenGL ES1.1/2.0/3.0
OpenVG1.1,OpenCL,DirectX11
RAM2GB DDR3
ROM32GB eMMC(8GB/16GB optional)
OSAndroid 11
DisplayLCD panel15.6 inch,LED backlight
Resolutions1920 x1080
Brightness300 cd/m²
Contrast Ratio800:1
View Angle (°)85/85(L/R),85/85(U/D)
Touch panelSensitive capacitive touch screen,10-point touch panel

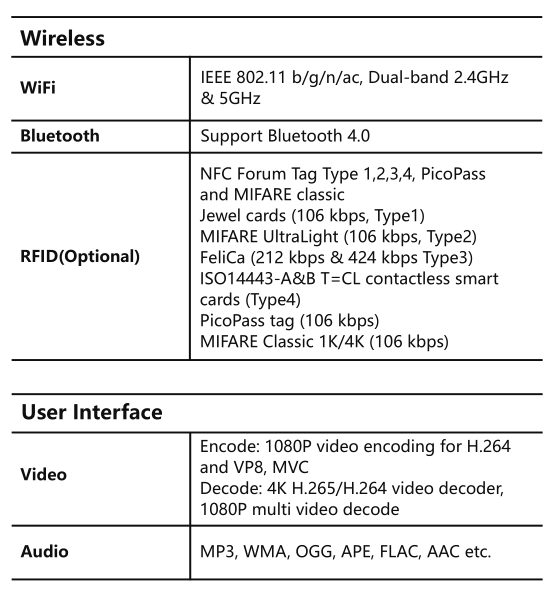

WirelessWiFiIEEE 802.11 b/g/n/ac,Dual-band 2.4GHz &5GHz
BluetoothSupport Bluetooth 4.0
RFID(Optional)NFC Forum Tag Type 1,2,3,4,PicoPass and MIFARE classic Jewel cards (106 kbps,Type1)
MIFARE UItraLight (106 kbps,Type2)
FeliCa (212 kbps &424 kbps Type3)
ISO14443-A&B T=CL contactless smart cards (Type4)
PicoPass tag (106 kbps)
MIFARE Classic 1K/4K (106 kbps)
MultimediaVideoEncode:1080P video encoding for H.264 and VP8,MVC
Decode:4K H.265/H.264 video decoder, 1080P multi video decode
AudioMP3,WMA,OGG,APE,FLAC,AAC etc.

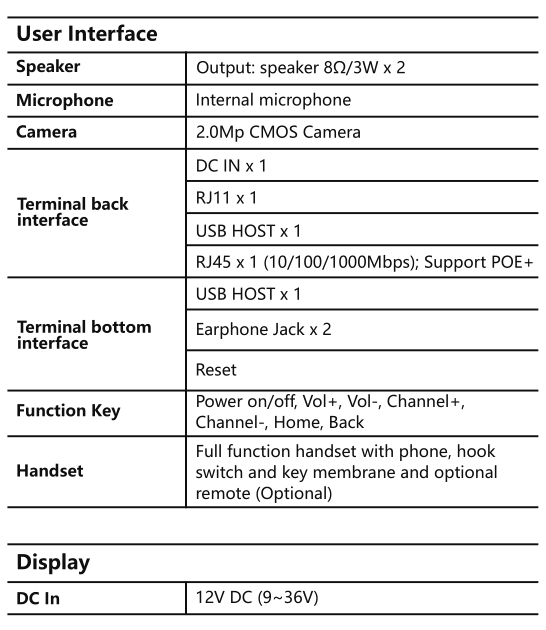

SpeakerOutput:speaker 8Ω/3W x 2
MicrophoneInternal microphone
Camera2.0Mp CMOS Camera
User InterfaceTerminal back
interface
DC IN x 1
RJ11 x 1
USB HOST x 1
RJ45x1(10/100/1000Mbps);Support POE+
Terminal bottom
interface
USB HOST x 1
Earphone Jack x 2
Reset
Function KeyPower on/off,Vol+,Vol-,Channel+,Channel-,Home,Back
HandsetFull function handset with phone,hook switch and key membrane and optional remote (Optional)
Power SupplyDC In12V DC(9~36V)

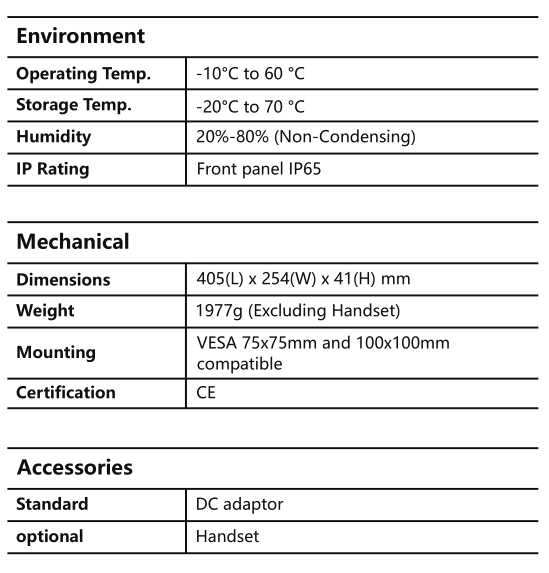

EnvironmentOperating Temp.-10℃ to +60℃
Storage Temp.-20℃ to +70℃
Humidity20%-80%(Non-Condensing)
IP RatingFront panel IP65
MechanicalDimensions405(L)x 254(W)x 41(H)mm
Weight1.977KG (Excluding Handset)
MountingVESA 75x75mm and 100x100mm compatible
CertificationCE
AccessoriesStandardDC adaptor
OptionalHandset
