MT1566

● High-Performance Rockchip RK3399 Dual/Quad-core processors
● 15.6-inch 1920×1080 IPS LCD for the best display
● 10-point capacitive multi-touch screen
● Android 12 operating systems
● Handset for the service call, key membrane, and remote control
● Supports WLAN, Bluetooth 5.0, and 5G module (optional)
● Extendable USB host for the barcode reader
● RJ45 interface for Ethernet LAN, support PoE+
● Built-in front CMOS camera, SSD hard disk (optional)
● VESA mount, 75x75mm and 100x100mm compatible
● Digital TV tuner (optional), Smart Card+RFID (optional)

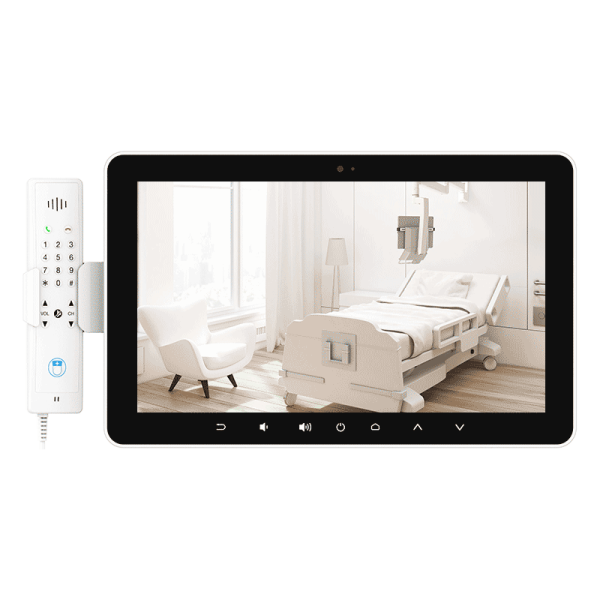

15.6”Smart Bedside Terminal
In the era of technological enhancement where the world population is surrounded by millions of smart devices and uncountable wireless signals, the lack of technology inside the clinical environment can cause of real frustration points for the Hospital and the patients. Saintway offers its intelligent Computing Terminal- MT1566. MT1566 bedside smart terminal is an easy-to-use touch-screen device that has been specially designed for hospitals and the clinical environment. It provides patient with a quantum leap of entertainment, communication, self-service and education options. It equips a 15.6″ IPS LCD screen with a 10-point touchscreen, latest powerful processor RK3399, USB host, OTG, extended storage, and a front camera, extended functions like a TV tuner, RFID and Barcode reader with a USB dongle, HDMI, USB-Type C. Featuring antibacterial plastics, this beside terminal fully complies with the latest hygiene and safety standards.

The all-in-one approach makes it a perfect choice
MT1566 comprehensively covers all the modern features in one device. It incorporates a high-quality LCD display, touchscreen, powerful processor, and optimized operating system. Moreover, the product has been developed keeping in view the specific challenges within the Healthcare environment utilizing anti-bacterial plastics and healthcare-certified components and peripherals.

Compatible with VESA mount
MT1566 supports VESA mounting, 75x75mm and 100x100mm compatible.
It can be conveniently placed on the patient’s bedside, featuring an adjustable screen for optimal viewing comfort and effortless positioning.

Fully compliant with latest hygiene and safety standards
MT1566 adheres strictly to the latest hygiene and safety regulations, employing antibacterial materials that align with European medical certification standards to mitigate the risks associated with pathogenic microorganisms, thereby guaranteeing patient safety and cleanliness.

Modularized peripherals
MT1566 can be extended through modularized peripherals: RFID, handset, and Built-in TV tuner dongle. RFID has various applications in the health industry. It simplifies the clinical trial process, improves the accuracy of patient identification, eases inventory management, and eradicates the risk of administering the wrong medications. Similarly, A TV tuner dongle allows a patient to watch television programs through MT1566.

Transforming Patient Care with Our Smart Bedside Terminal
The MT1566 smart bedside terminal revolutionizes the patient experience, providing easy access to an array of infotainment options and seamless connectivity with healthcare professionals, family members, and the outside world. With its intuitive and interactive design, patients can effortlessly engage in entertainment, communicate via phone calls, and leverage internet services, significantly enhancing their hospital stay.

Specifications

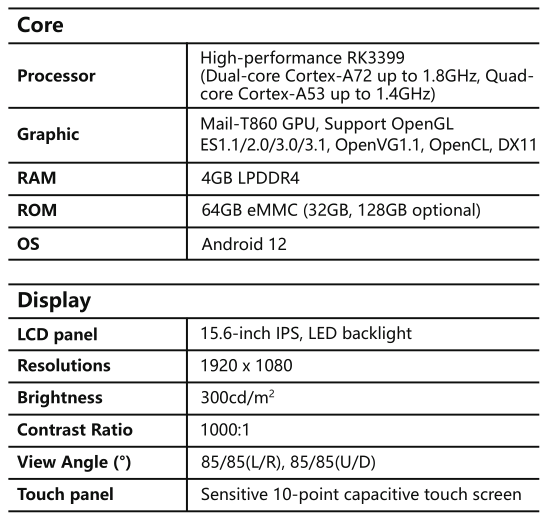

ModelMT1566
CoreProcessorHigh-performance RK3399(Dual-core Cortex-A72 up to 1.8GHz, Quad-core Cortex-A53 up to 1.4GHz)
GraphicMail-T860 GPU, Support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11
RAM4GB LPDDR4
ROM64GB eMMC (32GB, 128GB optional)
OSAndroid 12
DisplayLCD panel15.6 inch,LED backlight
Resolutions1920 x 1080
Brightness300 cd/m²
Contrast Ratio1000:1
View Angle (°)85/85(L/R),85/85(U/D)
Touch panelSensitive 10-point capacitive touch screen

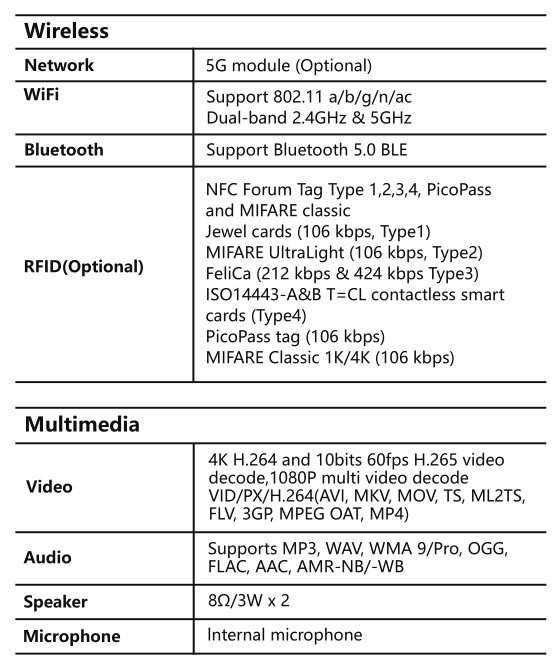

WirelessNetwork5G module(Optional)
WiFiIEEE 802.11  a/b/g/n/ac,Dual-band 2.4GHz &5GHz
BluetoothSupport Bluetooth 5.0 BLE
RFID(Optional)NFC Forum Tag Type 1,2,3,4,PicoPass and MIFARE classic Jewel cards (106 kbps,Type1)
MIFARE UItraLight (106 kbps,Type2)
FeliCa (212 kbps &424 kbps Type3)
ISO14443-A&B T=CL contactless smart cards (Type4)
PicoPass tag (106 kbps)
MIFARE Classic 1K/4K (106 kbps)
MultimediaVideo4K H.264 and 10bits 60fps H.265 video decode,1080P multi video decode
VID/PX/H.264(AVI, MKV, MOV, TS, ML2TS, FLV, 3GP, MPEG OAT, MP4)
AudioSupports MP3, WAV, WMA 9/Pro, OGG, FLAC, AAC, AMR-NB/-WB
Speaker8Ω/3W x 2
MicrophoneInternal microphone

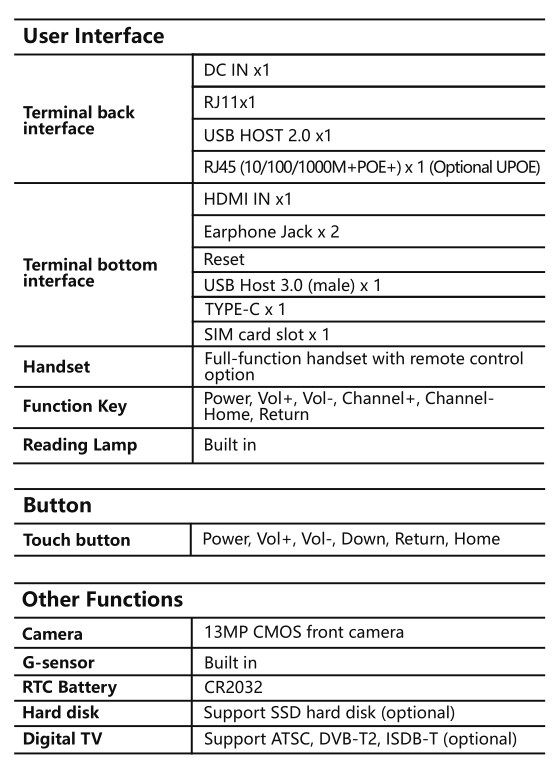

User InterfaceTerminal back
interface
DC IN x 1
RJ11 x 1
USB HOST x 1
RJ45 (10/100/1000M+POE+) x 1 (Optional UPOE)
Terminal bottom
interface
HDMI IN x 1
Earphone Jack x 2
Reset
USB Host 3.0 (male) x 1
TYPE-C x 1
SIM card slot x 1
HandsetFull-function handset with remote control option
Function KeyPower,Vol+,Vol-,Channel+,Channel-,Home, Return
ButtonTouch buttonPower, Vol+, Vol-, Down, Return, Home
Other FuctionsCamera13MP CMOS front camera
G-sensorBuilt in
RTC BatteryCR2032
Hard diskSupport SSD hard disk (optional)
Digital TVSupport ATSC, DVB-T2, ISDB-T (optional)
Power SupplyDC In12V DC(9-36V)

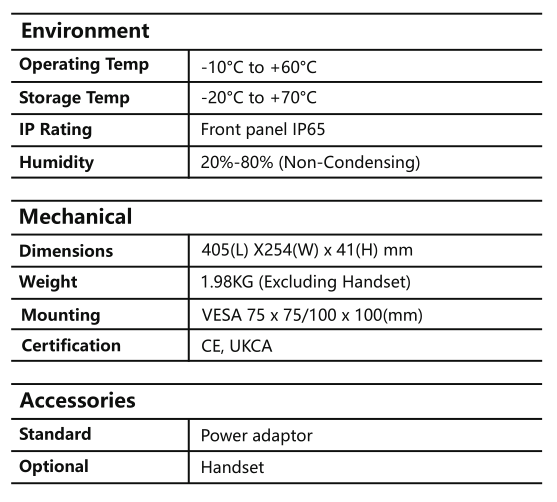

EnvironmentOperating Temp.-10℃ to +60℃
Storage Temp.-20℃ to +70℃
Humidity20%-80%(Non-Condensing)
IP RatingFront panel IP65
MechanicalDimensions405(L)x 254(W)x 41(H)mm
Weight1.98KG (Excluding Handset)
MountingVESA 75 x 75/100 x 100(mm)
CertificationCE, UKCA
AccessoriesStandardPower adaptor
OptionalHandset
