  • Hospital Bedside Healthcare TV

MT2199

● Easy-clean design and a front screen that is IP65-rated
● High-performance Rockchip RK3399 dual-core Cortex-A72 processor
● 10-point multi-touch capacitive screen with P-CAP touch technology
● 21.5-inch 1920×1080 IPS full HD screen
● Android 12 operating systems
● Handset for a service call, key membrane, and remote control
● Support 4G/5G Module (optional), Wi-Fi, Bluetooth 5.0 BLE
● USB host for RFID/Barcode reader, TV tuner dongle
● RJ45 interface for Ethernet LAN, support UPOE
● Built-in 13m-pixel CMOS camera

21.5”Smart Bedside Terminal
Recently, smart bedside computing terminals are being growingly endorsed in clinical environments due to the speedy growth of IoT in the healthcare sector. Saintway’s MT2199 bedside high-power computing terminal has been specially designed for use in a hospital and clinical environment. It can provide not only operational management services to the staff and medical care services to the patients, but also diverse entertainment programs such as TV, radio, video, audio or games under superior Rockchip’s RK3399 processor. While getting treatment for the actual disease in the hospital, the infotainment features of this terminal cover the psychological aspect to recover the patient.

Incredible User Experience
It’s 21.5-inch 1920×1080 IPS full HD screen with a 10-point multi-touch capacitive screen and P-CAP touch technology provides an amazing experience to its users. Patients can watch their favorite TV programs while in hospital. They can surf the net, play games, and much more. It’s multi-functionary features keep the patients engaged and stress-free during their hospital stay.

Made of Antibacterial Material
Pathogenic microorganism is a cause of grave concern in hospital and other healthcare locations, as they affect the optimal functioning of medical devices. Keeping in view of the concern, the whole shell of MT2199 is made of antibacterial material which complies with European medical certification. Its fan-less system prevents the spread of germs and allows for silent operation.

Multiple Interface to meet different demands
MT2199 can be extended through modularized peripherals: RFID, handset, and TV tuner dongle. RFID has various applications in the health industry. It simplifies the clinical trial process, improves the accuracy of patient identification, eases inventory management, and eradicates the risk of administering the wrong medications.Similarly, A TV tuner dongle allows a patient to watch television programs through MT2199.

HDMI Supported
MT2199 also supports HDMI technology which is a standard interface for simultaneously transmitting digital video and audio from a source, such as a computer or TV cable box, to a computer monitor, TV, or projector. Thus, it elevates the traditional in-room TV into a computing platform that provides patients with a range of various content.

Unparalleled Powerful Computing Device
MT2199 is a powerful computing device to host any kind of industrial application. Since the non-stop operation cycles of hospitals, this device is fully capable to compete and resolve the computational challenges in routine clinical and day-to-day hospital procedures. The advanced Rockchip RK3399 powerful processor of MT2199 ensures uninterrupted and efficient queries resolution.

Engaging and Empowering a Patient
Generally, a patient’s mobility remains confined within a hospital room due to which excessive rest and boredom negatively affect the patient’s health. However, this terminal helps engage them with infotainment stuff and empowers them to keep connecting with doctors, nurses and medical staff. As well as family and world.

Virtually Connect All Your Health Workers at One Platform
MT2199 connects your entire healthcare at a common virtual point. Due to its performance, it assists to communicate with doctors, and nurses and discussing medical reports and treatment, etc. It also connects us with those outside of the organization via the social app and helps us to keep in touch with things that matter.

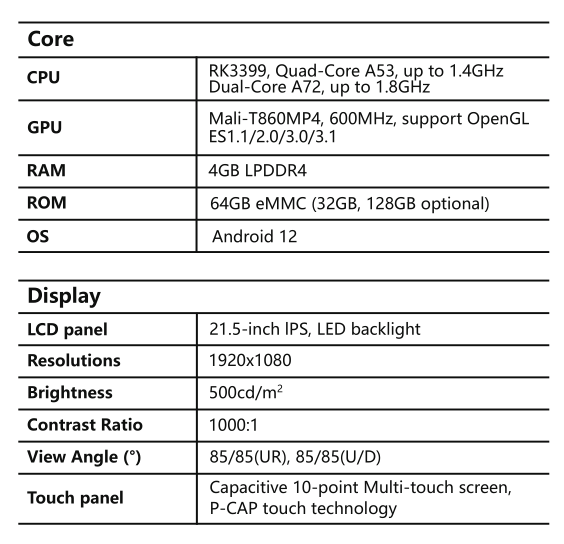

Specifications

ModelMT2199
CoreProcessorRK3399,Quad-Core A53,up to 1.4GHz Dual-Core A72,up to 1.8GHz
GraphicMali-T860MP4,600MHz, Support OpenGL ES1.1/2.0/3.0/3.1
RAM4GB LPDDR4
ROM64GB eMMC (32GB, 128GB optional)
OSAndroid 12
DisplayLCD panel21.5 inch IPS,LED backlight
Resolutions1920 x 1080
Brightness500 cd/m²
Contrast Ratio1000:1
View Angle (°)85/85(L/R),85/85(U/D)
Touch panelCapacitive 10-point Multi-touch screen P-CAP touch technology

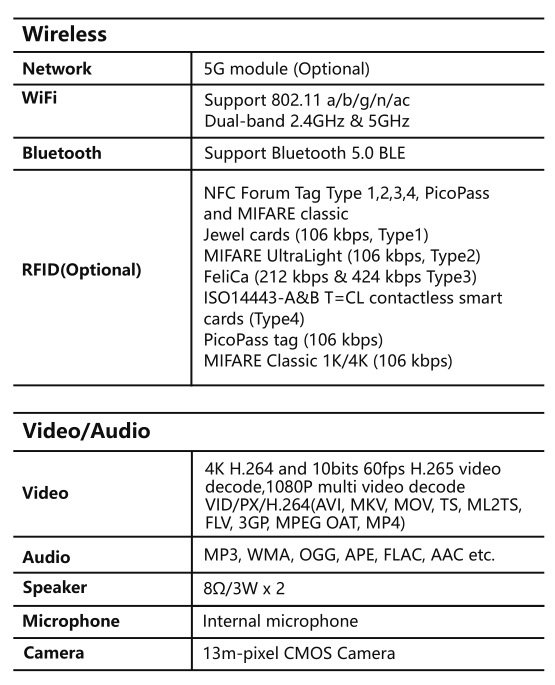

WirelessNetwork5G module(Optional)
WiFiSupport 802.11 a/b/g/n/ac,Dual-band 2.4GHz &5GHz
BluetoothSupport Bluetooth 5.0 BLE
RFID(Optional)NFC Forum Tag Type 1,2,3,4,PicoPass and MIFARE classic Jewel cards (106 kbps,Type1)
MIFARE UItraLight (106 kbps,Type2)
FeliCa (212 kbps &424 kbps Type3)
ISO14443-A&B T=CL contactless smart cards (Type4)
PicoPass tag (106 kbps)
MIFARE Classic 1K/4K (106 kbps)
MultimediaVideo4K H.264 and 10bits 60fps H.265 video decode,1080P multi video decode
VID/PX/H.264(AVI, MKV, MOV, TS, ML2TS, FLV, 3GP, MPEG OAT, MP4)
AudioMP3,WMA,OGG,APE,FLAC,AAC etc
Speaker8Ω/3W x 2
MicrophoneInternal microphone
Camera13m-pixel CMOS camera

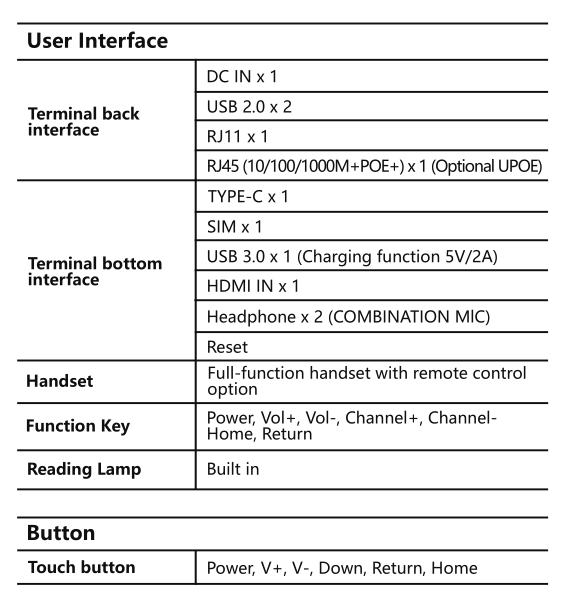

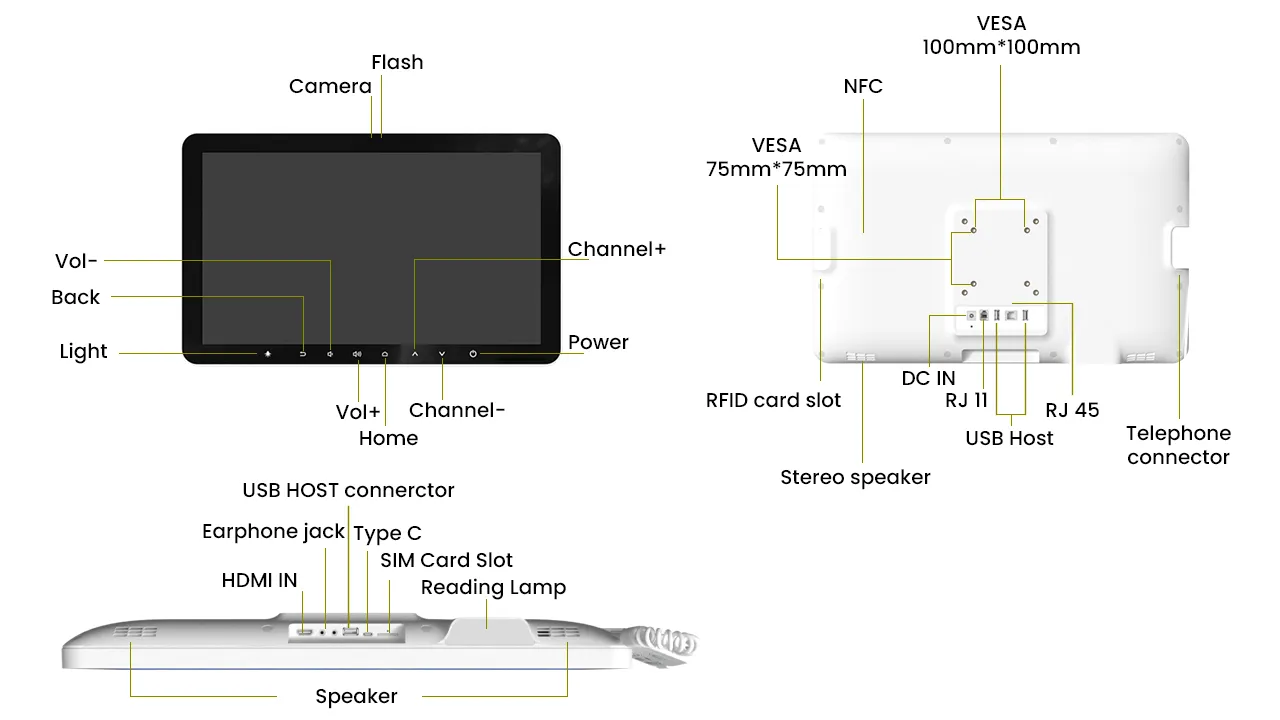

User InterfaceTerminal back
interface
DC INx1
USB 2.0×2
RJ11x1
RJ45(10/100/1000M+POE+)x1 (Optional UPOE)
Terminal bottom
interface
TYPE-Cx1
SIMx1
USB 3.0×1(Charging function 5V/2A)
HDMI IN x1
Reset
HandsetFull-function handset with remote control option
Function KeyPower,Vol+,Vol-,Channel+,Channel-,Home, Return
Reading LampBuilt in
ButtonTouch buttonPower, Vol+, Vol-, Down, Return, Home

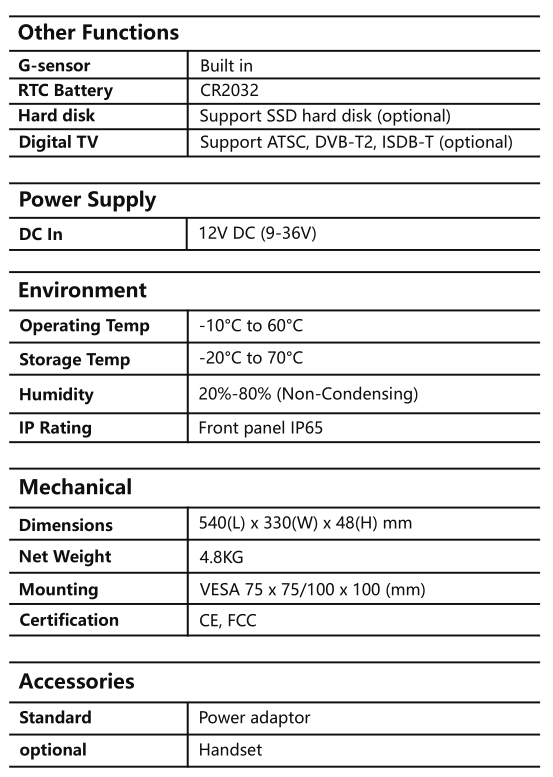

Other FunctionsG-sensorBuilt in
RTC BatteryCR2032
Hard diskSupport SSD hard disk (optional)
Digital TVSupport ATSC, DVB-T2, ISDB-T (optional)
Power SupplyDC In12V DC(9-36V)
EnvironmentOperating Temp.-10℃ to +60℃
Storage Temp.-20℃ to +70℃
Humidity20%-80%(Non-Condensing)
IP RatingFront panel IP65
MechanicalDimensions540(L)x 330(W)x48(H)mm
Net Weight4.8KG
MountingVESA 75×75/100×100 (mm)
CertificationCE,FCC
AccessoriesStandardPower adaptor
OptionalHandset
